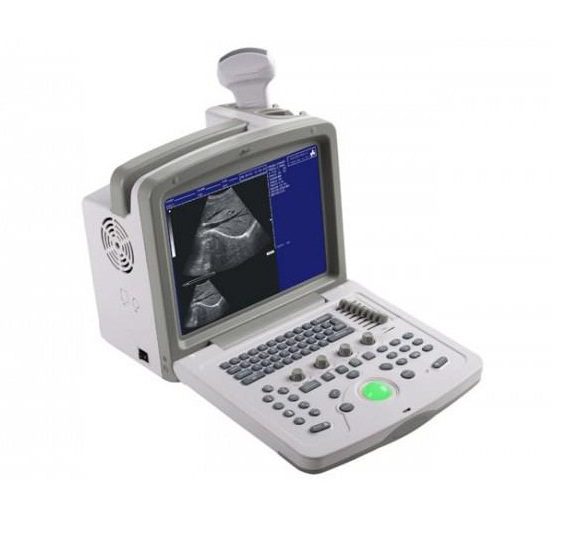

Ultrasound Scanner WED-180

Name: Ultrasound Scanner WED-180
SKU: EXT-58011C
Price: 36575.00 ZAR
Availability: InStock

R36 575,00 excl. VAT

Quality and affordability!

WED-180 is fully digital ultrasound system that is able to process real time image displays. It offers more than 40 body marks. Many probes are optional for clinic diagnosis demands. Offers high resolution.

SKU: EXT-58011C Categories: Diagnostics & Patient Monitoring, Ultrasound Equipment

Description
Knowledge Base & Guides

Ultrasound Scanner WED-180

Features

WED-180 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization(DRA), real time Dynamic

receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image.

The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound

images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.

This fully digital ultrasound system is used for abdominal, obstetric, cardiac and small body parts with ultrasound and sonography applications. Due to its compact in size and weight, it is very user-friendly.

Main Unit Parameters
Scanning Model	Electronic Linear Array, Electronic Convex Array
Probe Connector	2
Image Storage	≥64 frames; external U Disk
Display Depth	250mm (maximum)
Image Adjustment	Black/White, Left/Right, Up/Down, Brightness, Scanning Line Density, Dynamic Range, Focus Number, Focus Distance, Focus Position, Frame Correlation, M Speed and Sound Power
Image Processing	Image Smoothing/Sharpening, tissue harmonic, Gamma Correction, Histogram and Pseudo-color
Measurement	Distance, Perimeter, Area, Volume, Heart, GA, EDD, FW
Report	Automatically generate abdomen, urology, obstetrics and cardiac reports.

Portable digital ultrasound system WED-180 / No Battery Included

CLINICAL APPLICATIONS:

Abdominal.
OB/GYN.
Urology.
Cardiology.
Small parts.

FEATURES:

Dynamic aperture technology to ensure image definition, from nearest to furthest fields.
RDA: Real-time Dynamic Aperture.
DFS: Dynamic Frecuency Scan.
DRA: Dynamic Receiving Apodization.
DRF: Dynamic Receiving Focusing.
Creates records automatically (Normal/OB).
Automatic probe identification (2 sockets).
Backlit keypad.
Digital controls.
8 segments TGC

TECHNICAL DATA:

Scanning methods: Convex / Linear / Micro-Convex.
Display modes: B, B+B, B+M, M, 4B, B+2B, 6B, 12B.
Grayscale: 256.
Scan depth: 40mm – 240 mm.
CINE: >500 frames.
Permanent image saving: 64 frames.
Image flip: Up/down, left/right, black/ white
Pseudo-Colour: 3.
Zoom: 2 steps. Both in real time and frozen image.
Measurements: Distance, Circunference, Area, Volume, Heart Rate.
OB measurements: EDD, GA, FW (BPD, GS, CRL, FL, HC, AC).
Ports: PAL-D, USB 2.0, RS-232.
Display: LCD display 12.1″ (adjustable brightness/contrast).
Body marks: 40.
Comments: Date/Time, Name, Age, Gender, Doctor, Hospital, Notes.
Power supply: AC 100V-240V, 50/60Hz.

STANDARD CONFIGURATION:

Main unit.
2 probe sockets.
Convex Probe

OPTIONAL PROBES:

Ref. 369-PROBE-R20: Micro-Convex probe 5.0 MHz.
Ref. 369-PROBE-EL: Linear Endorectal probe 7.5 MHz.
Ref. 369-PROBE-HL: Linear probe 7.5 MHz.
Ref. 369-PROBE-R13: Convex Transvaginal probe 6.5 MHz.
Ref. 369-PROBE-R60: Convex probe 3.5 MHz.
