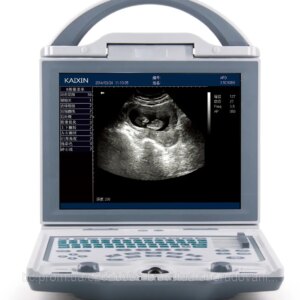

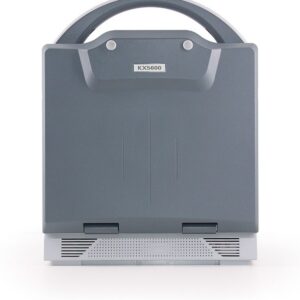

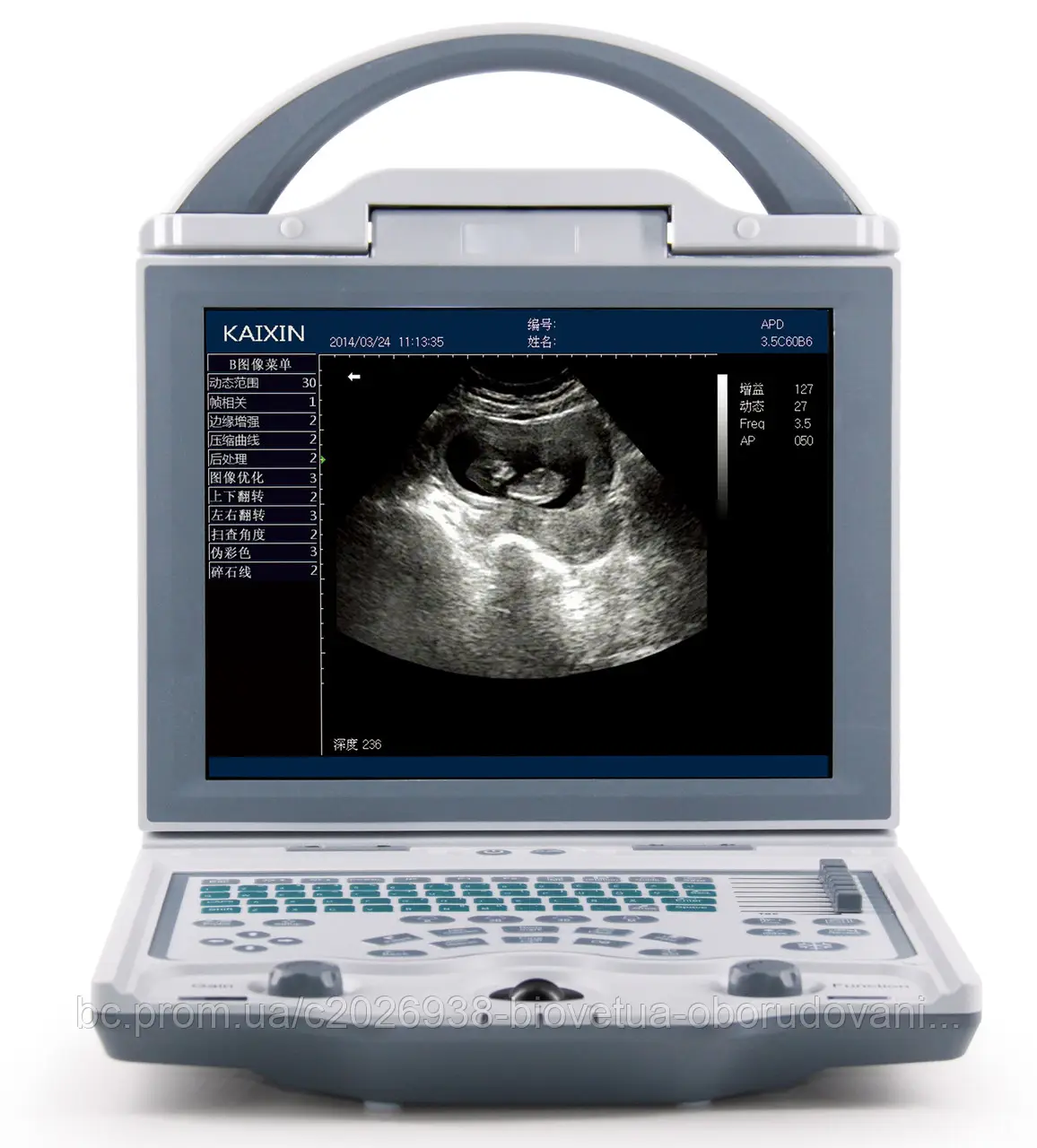

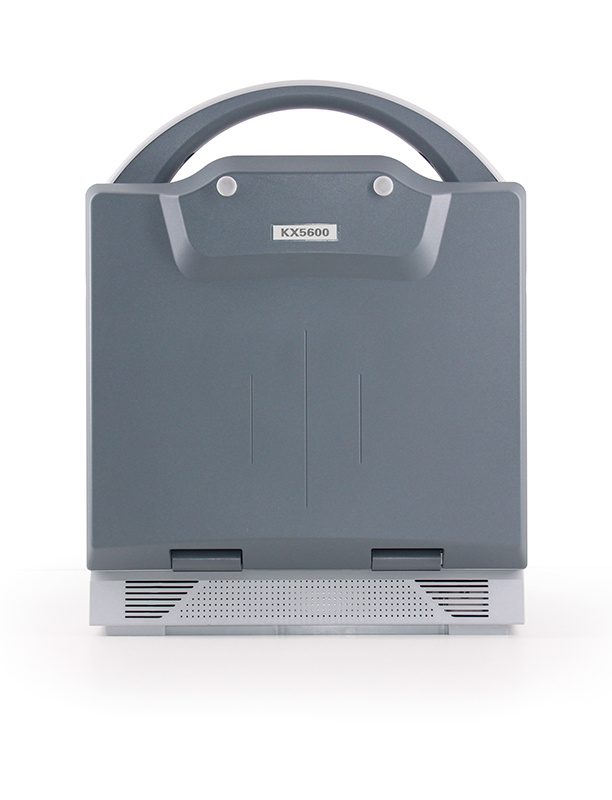

Rechargeable Human Ultrasound Scanner -KX5600

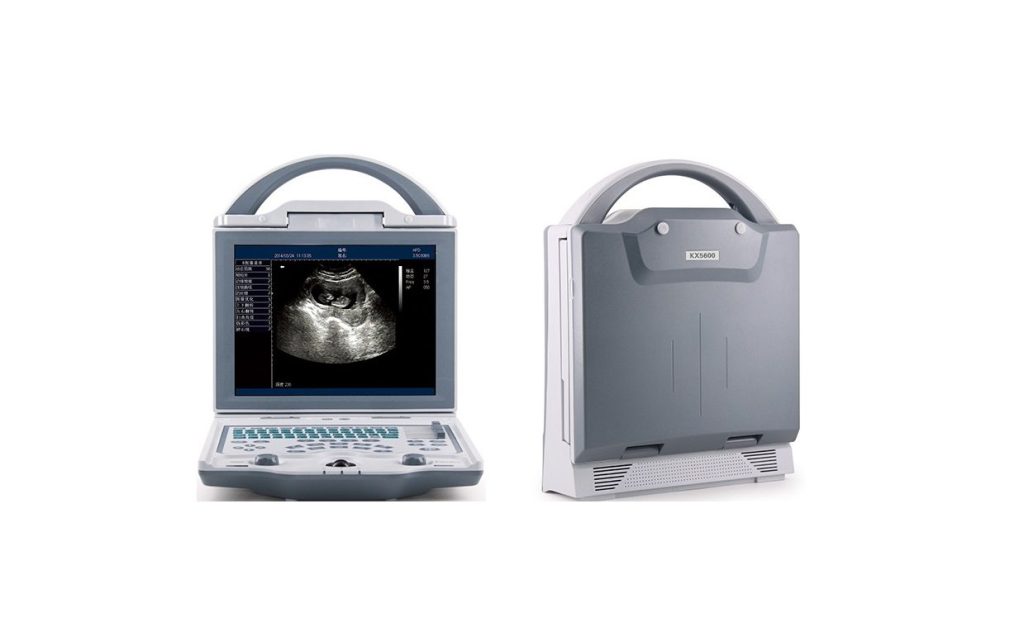

KX-5600 Full Digital B Mode Ultrasound Machine
Features:
1.Humanized design
2.Rapidly one-key operation includes one-key storage, one-key browse and one-key print
3.Unique CPU temperature control function, when the temperature is too high, it can automatically shut down.
4.Rotatable LED Panel to make the users get the best image visual sense from different angles.
5.One-key to light the keyboard, suitable for operation dark room
6.Practical function knob design,use A key to realize quick adjustment in a variety of conditions.
7.Powerful data management system
8.Optimization of the query image function, can realize 1-2 seconds to your needs.
9.internal work station multi-plan template,quickly finish data manage function, realize process multi medical histories function
10.Abundant software package
11.Equipped with professional gravel package which can realize real time positioning measurement.
12.OB measurement and analysis 1s kinds OB table and several GA measurement AFI, Fetus growth curve and OB report
13.GYN measurement and analysis general GYN software packages and GYN report
14.Urological measurement and analysis residual urine, volume of prostate,Urological report.

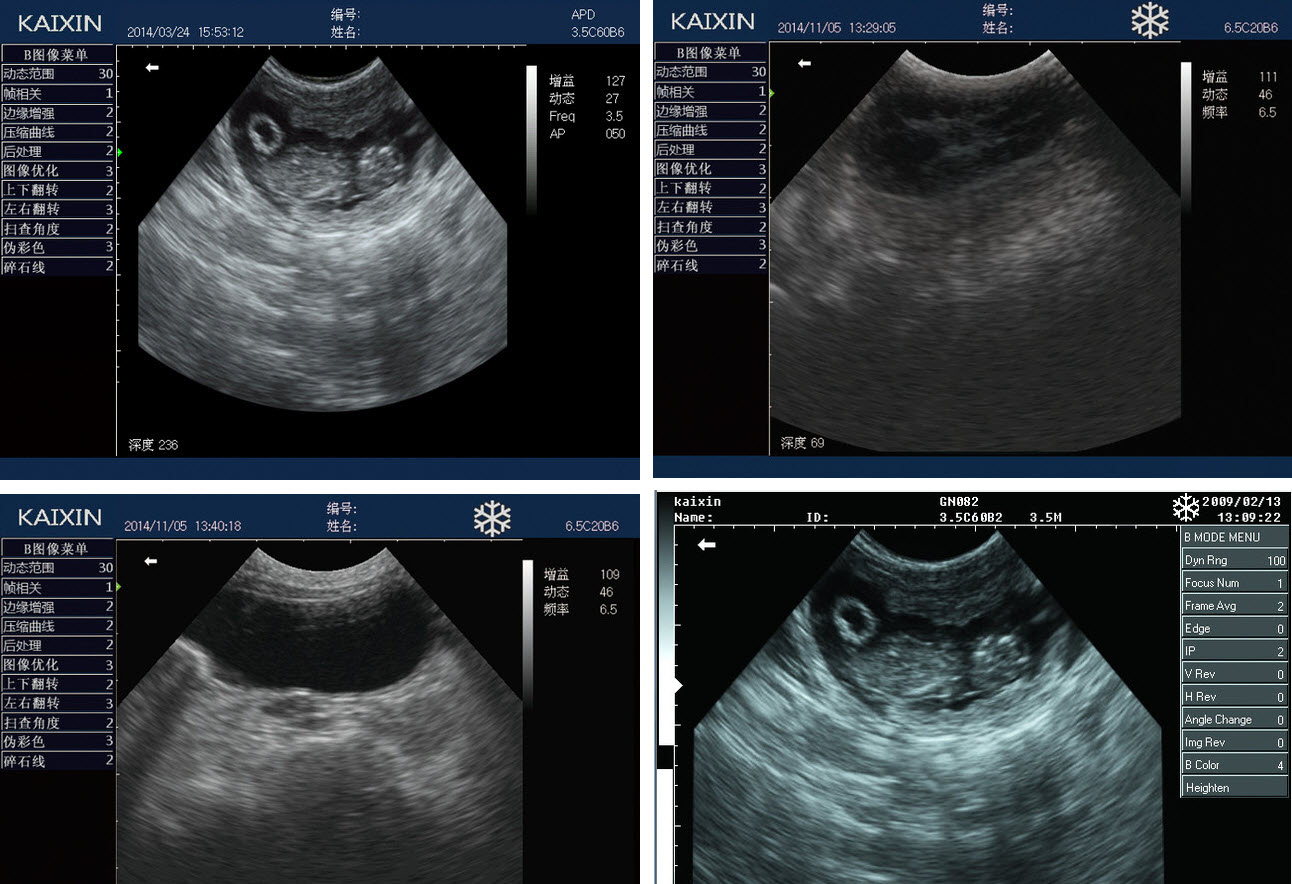

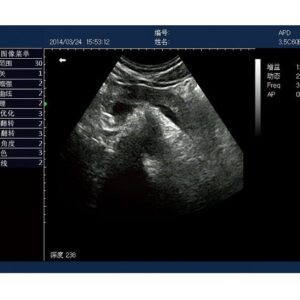

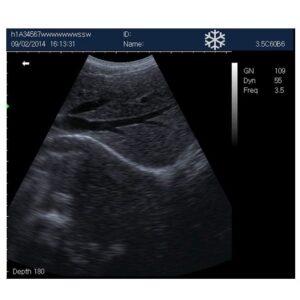

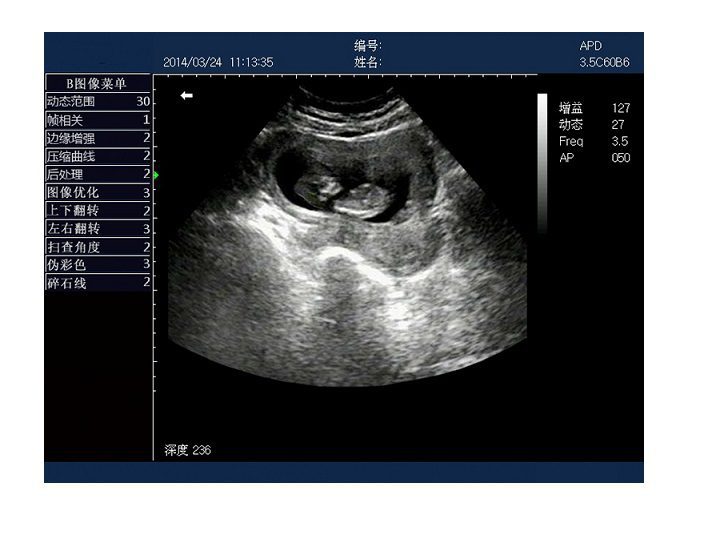

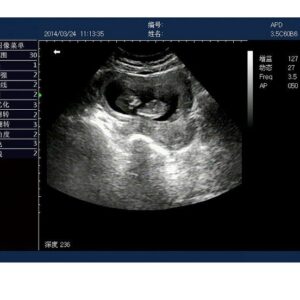

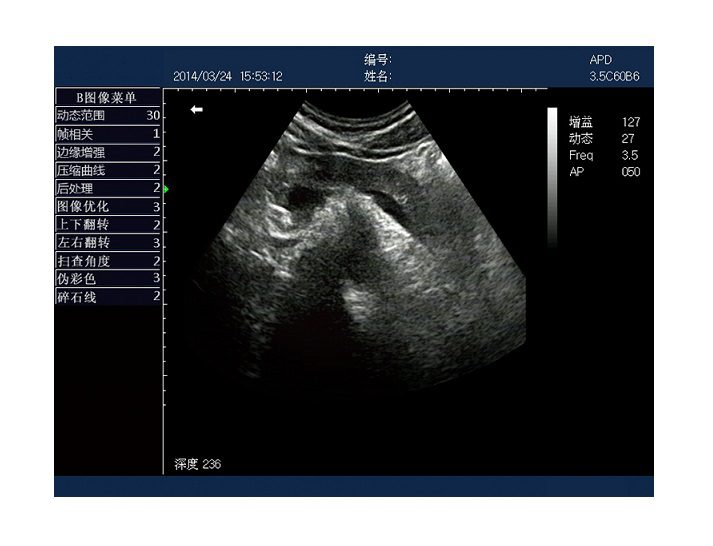

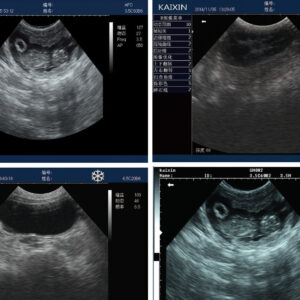

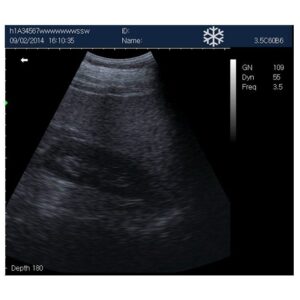

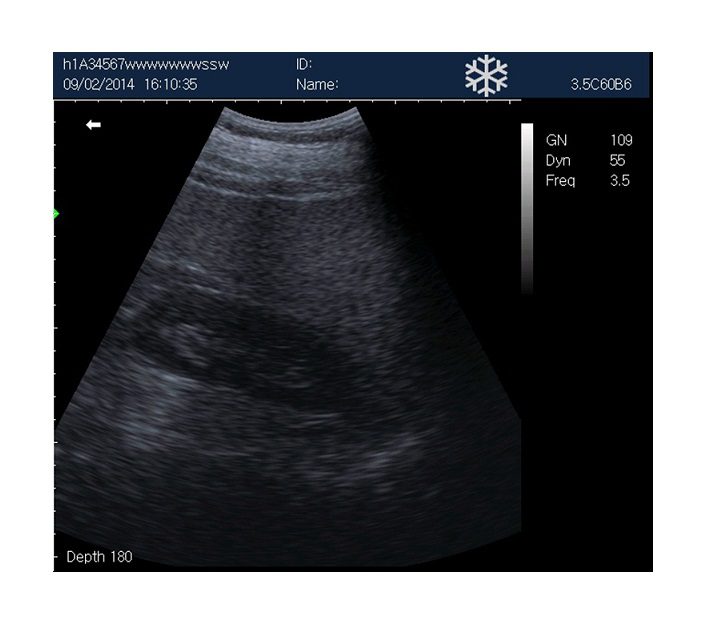

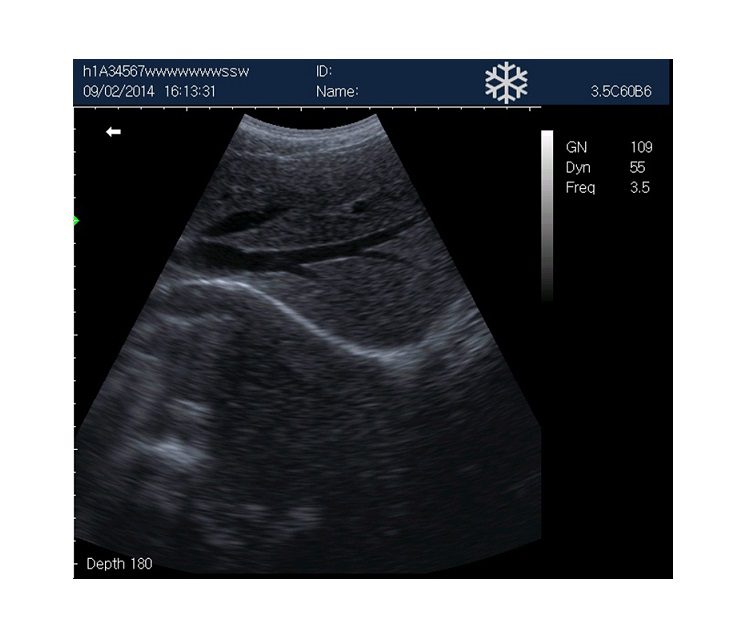

15.High quality clinical image
16.A High resolution and full screen display ,meet your vision needs
17.Adjustable LED brightness, convenient and practical
Specifications:
| 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle； | |
| Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable. | |
| Menu operation system, with different languages according to requirement including Spanish,English, French, Russian and Portuguese； | |

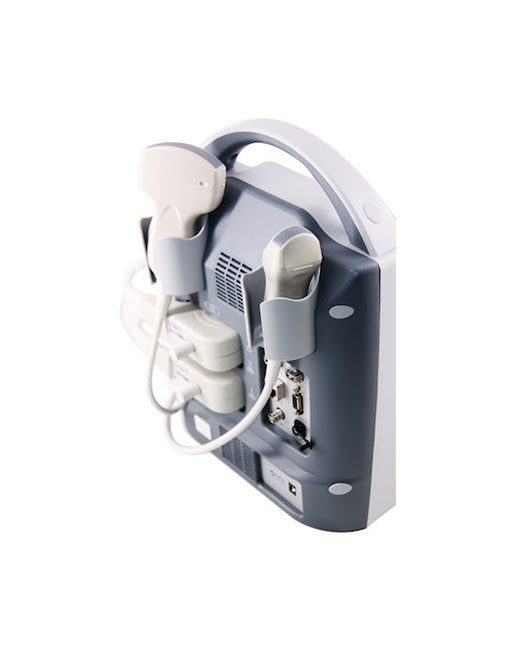

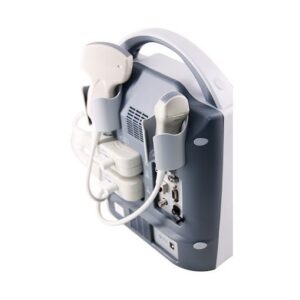

| Two probe sockets, auto-identify different optional probe； | |
| Body marks | total 64 kinds body marks indicating probe position； |
| Display mode | B、2B、4B 、B/M、M ； |
| Adjustable depth | 10 grades, max depth to 236mm； |
| Gain | 0～127dB； |
| Contrast | 27～90dB； |
| Gray scale | 256； |
| 8 steps intelligent TGC； | |
| Frame frequency | 30 frames /second |
| 8 kinds pseudo colors | |
| Image storage | 4G hard disk to permanently store about 5000 frames images； without loss when power off. |
| Cine loop | 256 frames； |
| Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)； | |
| the gravel software package with real-time position line measurement | |
| Normal measurement: distance、perimeter, area, volume, angle, length and area stenosis ratio measurement. | |
| Cardiac measurement | Depth, slope, heart rate, cycle； |
| Gynecology measurement and analysis | gynecology general measurement and gynecology report. |
| OB measurement including | 15 kind of obstetric software, several GA measurement, amniotic |
| fluid index ,fetal growth curve and OB report. | |
| Urology measurement and analysis: residual urine volume, prostate volume, and urology report . | |
| One-key store: concise and practical; | |
| One-key review：fast, practical image review function; | |
| One-key Print； | |
| One-key Transfer the current frozen image to net workstation to complete its image text report and print directly; | |
| Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station)； | |
| Unique One-key-light keyboard function for black room use; | |
| Display brightness adjustable； | |
| Dual TV output: PAL/NTSC, can connect video printer when necessary； | |
| Power supply | 100-240V～ 1.2-0.6A |
| frequency | 50-60Hz； |
| Power supply adaptor output | DC12.8V 3.0A； |

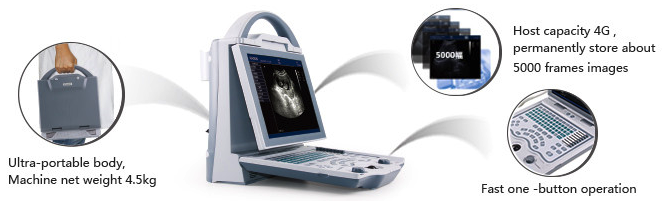

| Main unit weight | 4.5kg（without accessories）； |
| Main unit dimension | 256×150×326mm（L×W×H）； |
| Main basic configuration | Main unit 1pc； |
| 3.5MHz convex probe 1pc； | |
| Power supply adaptor 1pc； | |
| Reticle 1pc; | |
| Two probe sockets | |
| Optional parts | |
| Optional probes | 6.5MHz multi-frequency trans-vaginal probe(through vagina) |
| 6.5MHz micro-convex probe for small animals | |
| 7.5MHz multi-frequency linear probe | |
| 7.5MHz multi-frequency cavity probe (through anus) | |
| Battery charger | Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh |
| trolley | |
| Video printer（UP-897MD） | |
| Ethernet Switch | |
