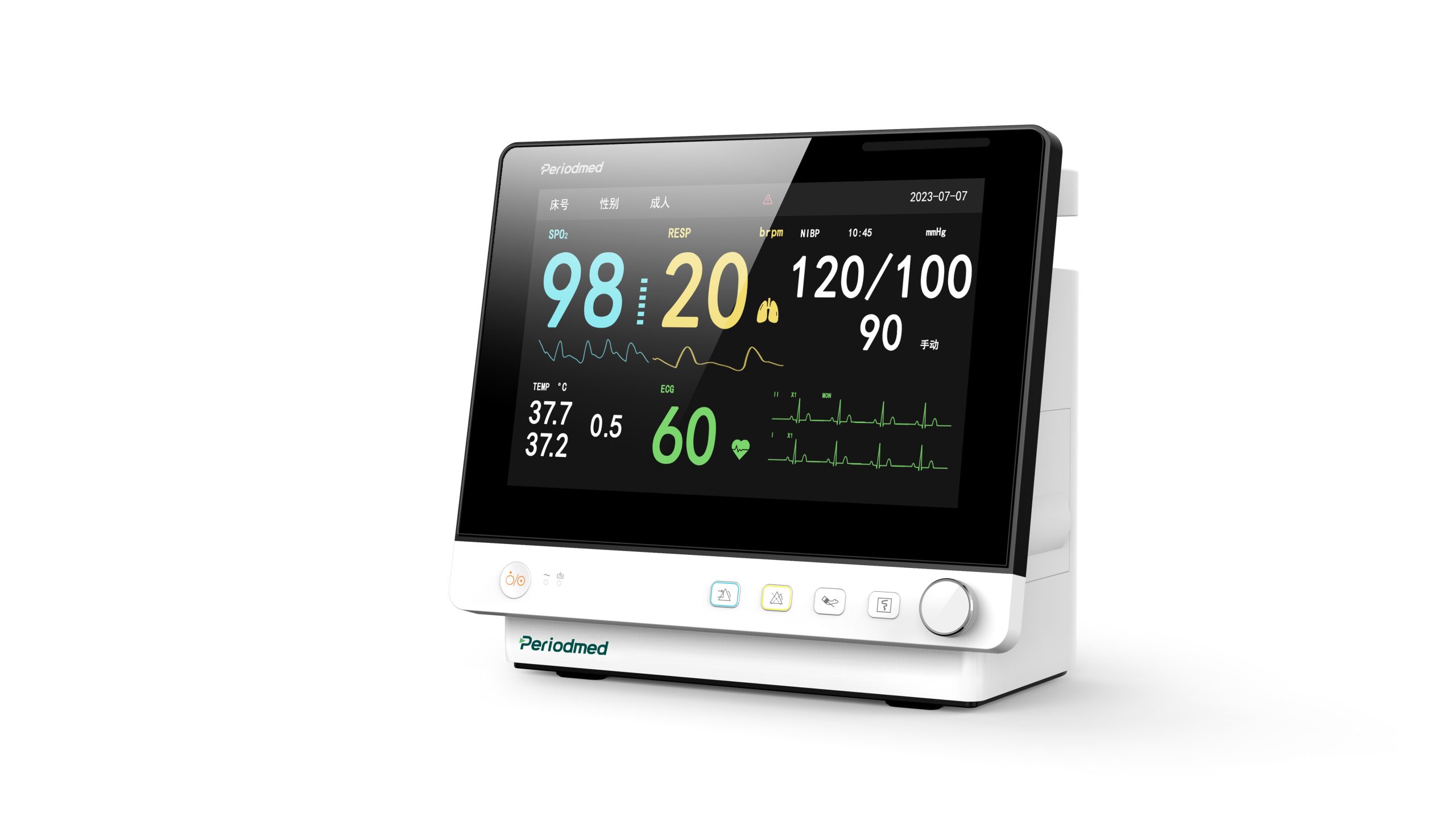

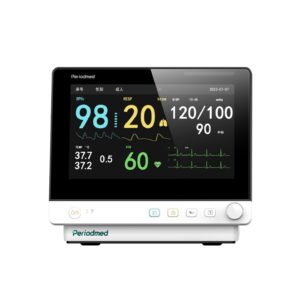

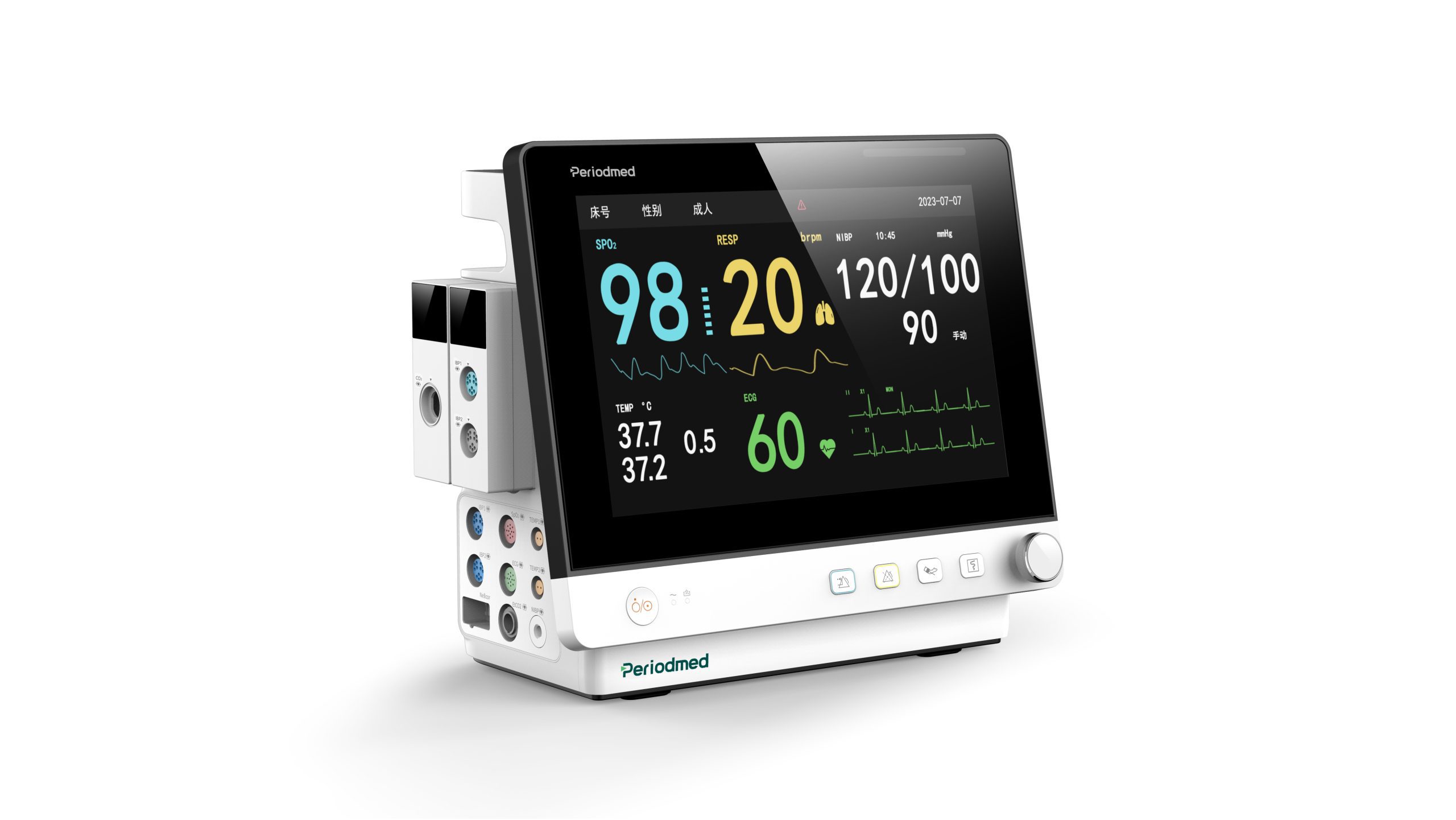

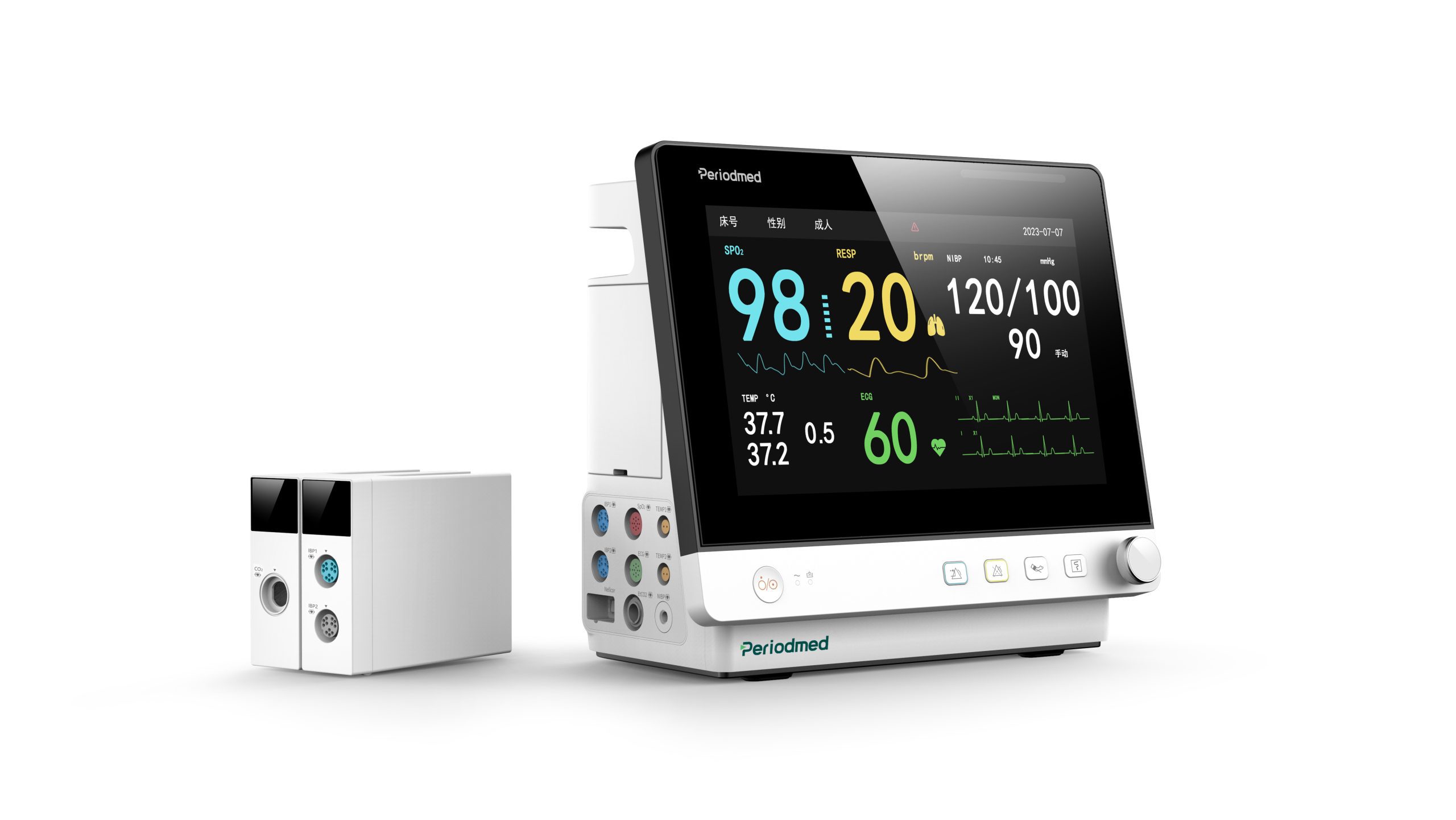

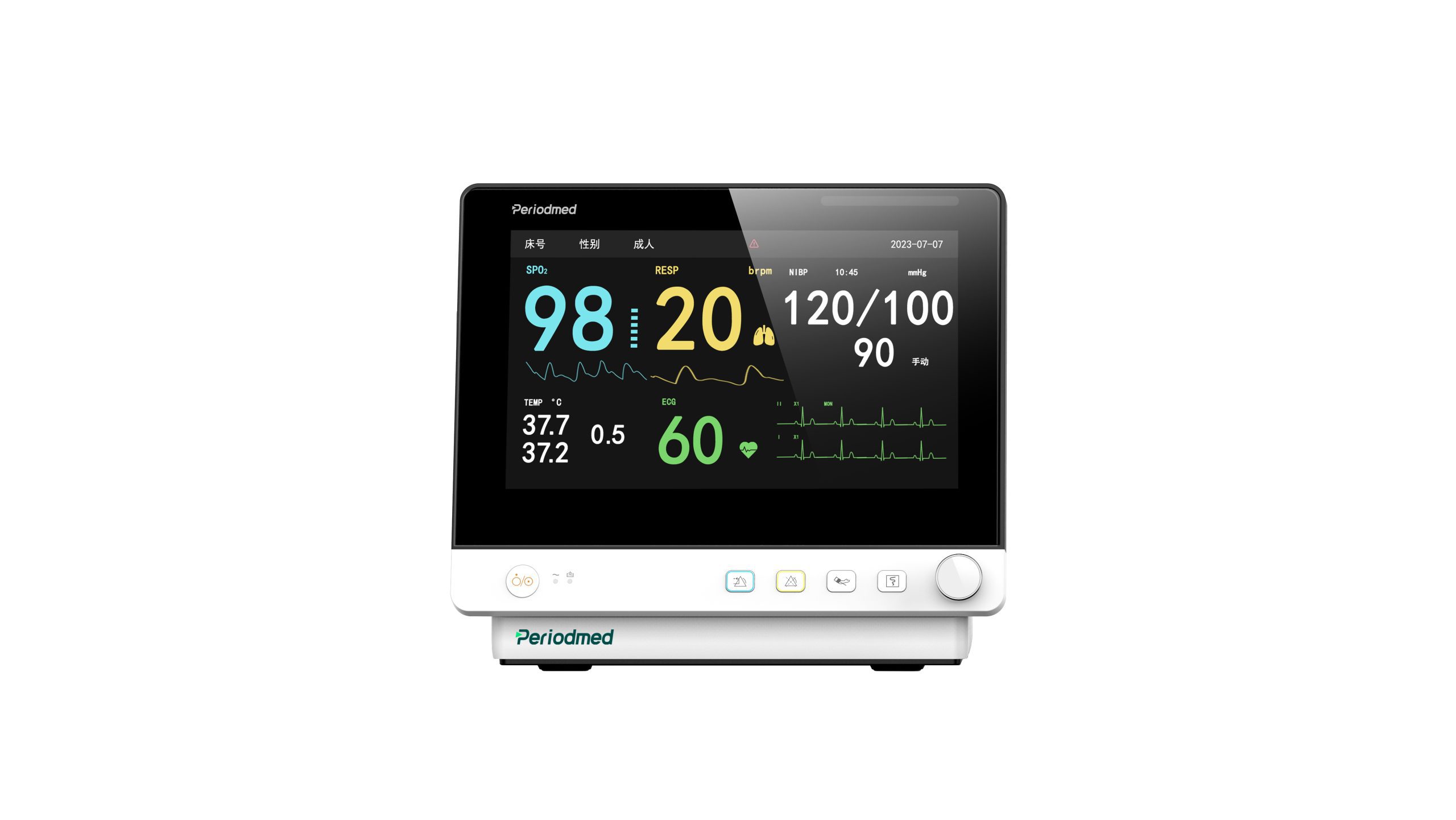

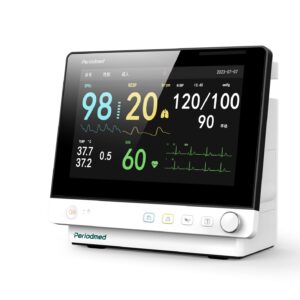

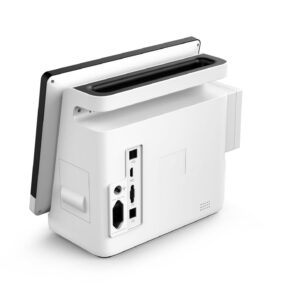

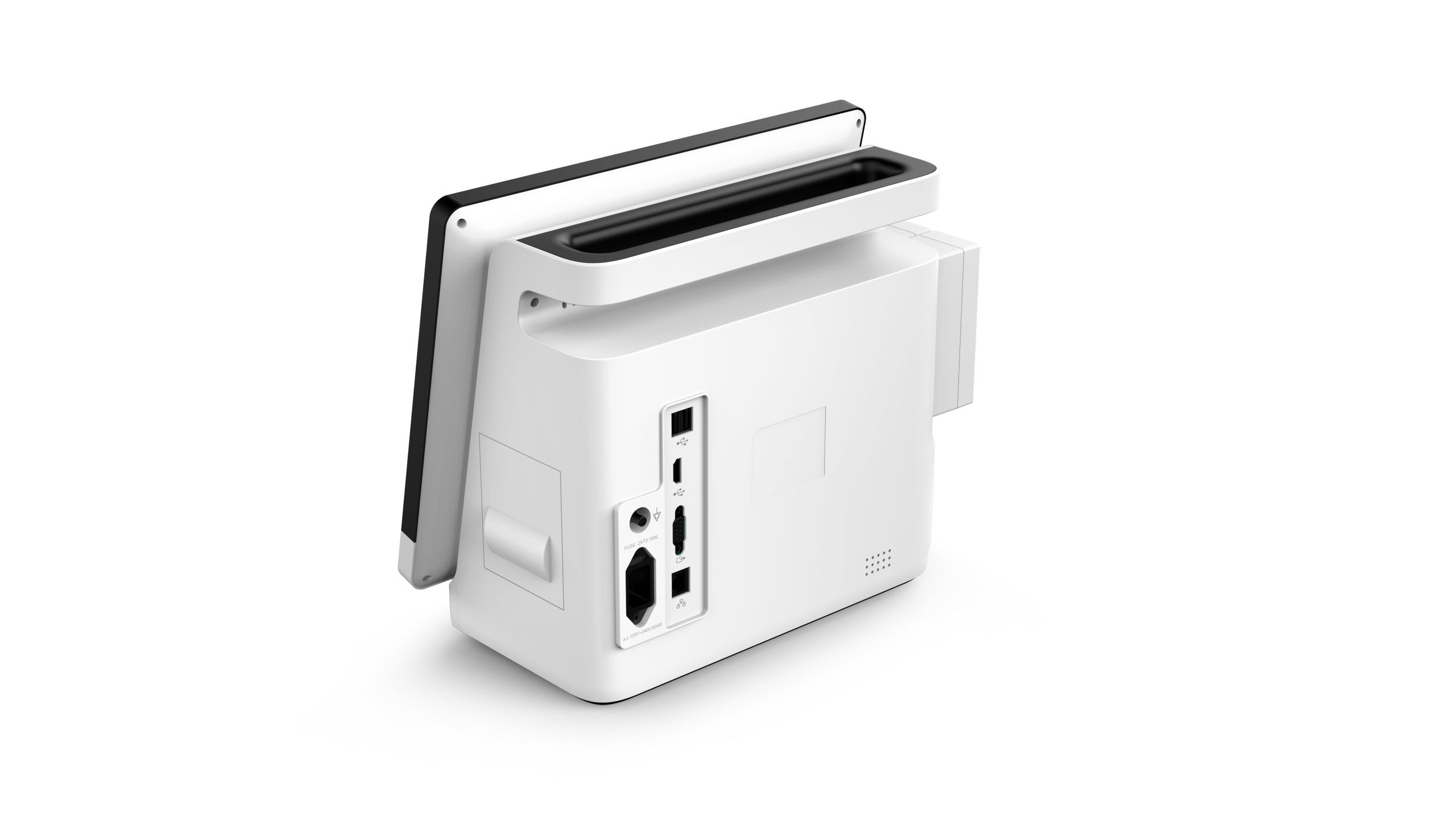

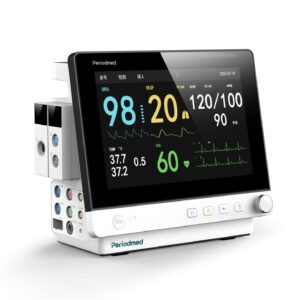

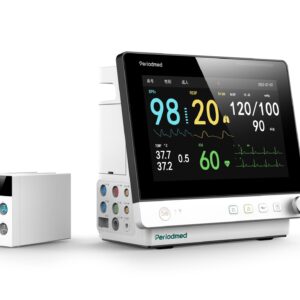

Patient Monitor PM-LP12A

12 INCH PATIENT MONITOR
PM-LP12A
NIBP , SPO2 , TEMP, RESP, ECG, ETC02
TECHNICAL SPECIFICATIONS Multi-parameter Patient Monitor • CE, ISO13485 • SFDA: Class Ⅱb • Anti-electroshock degree: ClassⅠequipment (internal power supply) • TEMP/SpO 2 /NIBP: BF • ECG/Resp: CF Quality Standards and Classification • Adult/Pediatric/Neonatal/Medicine /Surgery/Operating Room/ICU/CCU Application Range • • 12” realcolorTFTscreen Resolution:800×600 • One alarm indicator(yellow/red) • One working indicator(green) • One battery charge stateindicator(green) • Three modes in accordance with the alarm state Display Operating Environment : • Temperature: 0 ~ 40 ℃ • Humidity: ≤85% • Altitude: -500~4600m Transport and Storage Environment : • Temperature: -20~60 ℃ • Humidity: ≤93% • Altitude: -500~13100m Environment • AC: 100 ~ 240V, 50Hz/60Hz • DC: Built-in rechargeable battery • Battery: 5200mAh 11.1V lithium battery 4h operating afterf ull charge(one piece) 5min operating after low battery alarm Power Requirements • Equipment: 300mm×286mm×155 mm(about); 4.5kg(about) • Package : 350mm ×380 mm × 300mm(about); 6.5kg(about) Dimension and Weight • Trend diagram/table: 7x24h • NIBP review: 400 events • Wave review: 100min • Alarm review: 100 alarm events • Support drug concentration titration analysis Date Storage • Range: 0 ~ 100% • Resolution: 1% • Precision: 70% ~ 100%: ±2 DIGIT 0% ~ 69%: ±no definition given SpO2 • Range: 20 ~ 300bpm • Resolution: 1bpm • Precision: ±3bpm Pulse Rate • Channel 2 • Measure & alarm range: 0 ~ 50 ℃ • Resolution: 0.1 ℃ • Precision (no sensor): ±0.1 ℃ TEMP • Etco2 (Optional) • IBP modular (Optional) • Touch screen (Optional) • Trolley bracket (Optional) • Hanging bracket (Optional) • Monitor recorder (Optional) • Wifi (Optional) • C.O.modular • BIS modular Optional • 5 Leads: RA, LA, LL, RL, V • Lead mode: Ⅰ,Ⅱ, Ⅲ, aVR, aVL, aVF, V Increase: ×250，×500，×1000， ×2000 • Sensitivity: > 200 uV (Peak-to-peak value) • Input impedance: > 5 ( megohm ) • Bandwidth: Surgery 1 ~ 20 Hz • Monitor 0.5 ~ 40 Hz • Diagnostic 0.05 ~ 130 Hz • CMRR 100dB • Polarization Voltage: ± 300mV • Baseline Recovering Time: After defibrillation< 3 seconds • Signal Range: 8 mV （Peak-to-peak value）• Calibrating Signal: 1mV, precision ±5% • Heart rate range：15-380bmp • Heart rate accuracy:+/-1% ECG • Method: RA-LL impedance • Resp Impedance range: 0.3 ~ 3 • Base Impedance range: 200 ~ 4000 • Bandwidth: 0.1 ~ 2.5Hz • Resp rate: Adult 0 ~ 120BrPM • Neonatal/Pediatric 0 ~ 150BrPM • Resolution: 1BrPM • Precision: ±2 BrPM • Asphyxia Alarm: 10～40 seconds RESP • Method: Pulse wave oscillometry • Work mode: Manual/ Auto/ STAT • Measure interval of auto mode: 1,2,3,4,5,10,15,30,60,90,120,180, 240,480 minute(s) • Measuring Time of STAT Mode: 5 minutes • PR range: 30 ~ 250bpm • Measure & alarm range: Adult SYS 40 ~ 270mmHg DIA 10 ~ 215mmHg MEAN 20 ~ 235mmHg Pediatric SYS 40 ~ 200mmHg DIA 10 ~ 150mmHg MEAN 20 ~ 165mmHg Neonatal SYS 40 ~ 135mmHg DIA 10 ~ 100mmHg MEAN 20 ~ 110mmHg • Static pressure range: 0 ~ 300mmHg Precision: ± 3mmHg • Pressure precision: Max. average error: ±5mmHg Max. standard deviation: ±8mmHg • Overvoltage protection: Adult 300mmHg Pediatric 240mmHg Neonatal 150mmHg NIBP • Label ART, PA, CVP, RAP, LAP, ICP, P1, P2 • Measuring and alarm range • ART 0 ~ 300 mmHg • PA -6 ~ 120 mmHg • CVP/RAP/LAP/ICP -10 ~ 40 mmHg • P1/P2 -10 ~ 300 mmHg • Press Sensor • Sensitivity 5 uV/V/mmHg • Impedance 300-3000 • Resolution: 1 mmHg • Accuracy: ±2% or ±1mmHg, which great • Actualization interval: about 1 Sec. IBP • Side/Main stream • Warm-up time:when the ambient temperature is 25 ℃, the carbon dioxide curve(capnogram) can be displayed within 20/15 seconds, and all the specifications can be fulfilled within 2 minutes. • Measurement range:0-150mmHg, 0-19.7%,0-20kPa (at 760mmHg), atmospheric pressure provided by the host. • Resolution 0.1mmHg ：0-69mmHg 0.25mmHg： 70-150mmHg • Precision 0-40mmHg： ±2mmHg 41-70mmHg： ±5%（reading） 71-100mmHg： ±8%（reading） 101-150mmHg：±10%（reading）• Respiratory rate range 0- 150 BPM • Respiratory rate accuracy: ±1 BPM CO2 • NIBP cuff & tube • ECG cable & electrodes • SpO2 sensor • TEMP probe • Lithium-ion battery • Power cable • Operator’s manual
