AED DEFIBRILLATOR RESCUE SAM

AED DEFIBRILLATOR RESCUE SAM

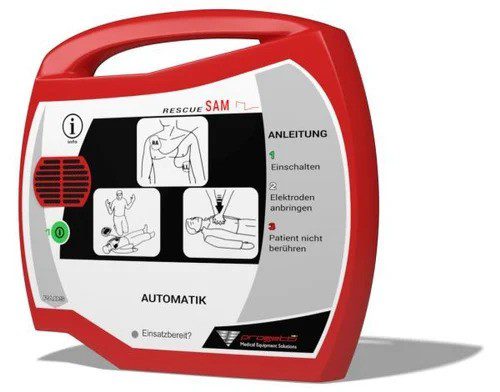

AED DEFIBRILLATOR RESCUE SAM is a semi-automatic external defibrillator designed for providing simple and direct voice prompts and indications for a straightforward rescue operation. It is lightweight and battery powered for maximum portability.
RESCUE SAM is designed to treat Ventricular Fibrillation (VF) and Fast Ventricular Tachycardia (VT).

TECHNICAL SPECIFICATIONS

OPERATING MODE: semi-automatic
WAVEFORM: BTE (biphasic truncated exponential type); impedance compensated
ENERGY: 200J fixed as new norms ERC 2015
– adult: nominal 200 J into a 50 Ω load
– infant/children: less than 50J using optional attenuated pediatric pads
SHOCK ENERGY ACCURACY: According to IEC EN60601-2-4
PROTOCOL: voice prompts and indicators guide user through protocol
PACEMAKER: detection and rejection

CHARGE CONTROL: automatic by software (arrhythmia detection system and charging control), Analysis time: about 6 seconds
CHARGE TIME FROM “SHOCK ADVISED”: <6 seconds, typical with new battery
VOICE INSTRUCTIONS: detailed voice messages guide responder through use of the defibrillator
CONTROLS: shock button, info-button, On/Off button
INDICATORS: LEDs (different colors), info-button
CHARGE COMPLETE INDICATOR:
– Voice prompts (press the shock red button)
– Flashing red shock button

SIZE: 80x300x270 mm
WEIGHT: 2.2 kg with battery pack installed.

Standard set:
– main unit
– disposable defi pads adult
– disposable battery pack

Optional:
– preconnected defi pads adult/pediatric
– disposable defi pads pediatric
– carrying bag
– wall mounted cabinet
– software with USB cable adapter for PC data management
– wall mount
