300g Contec ecg -3 channel with interpretation

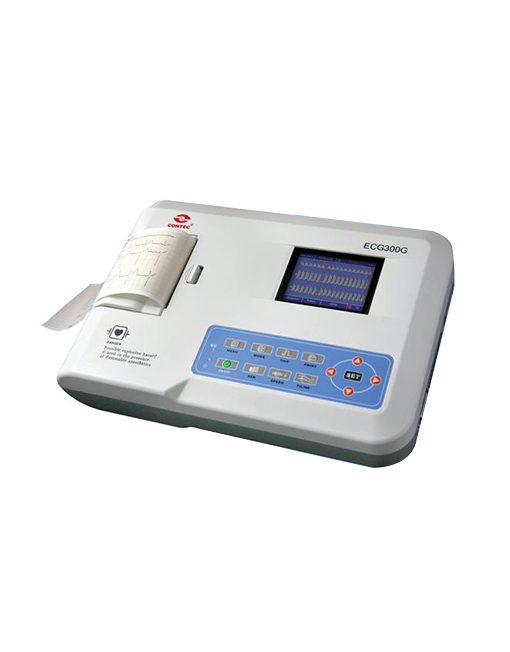

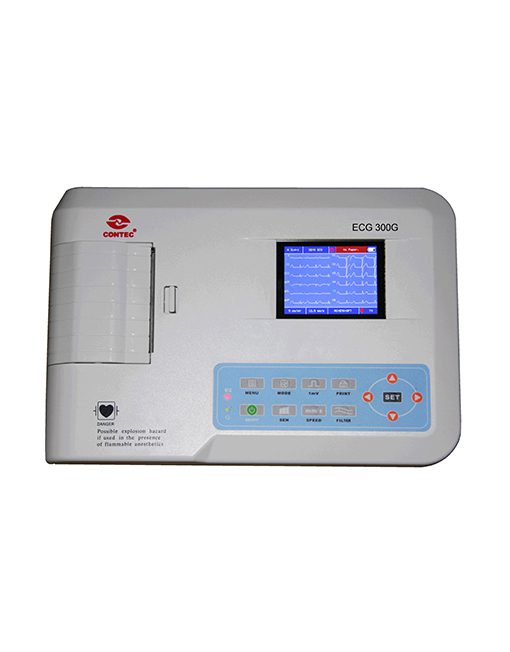

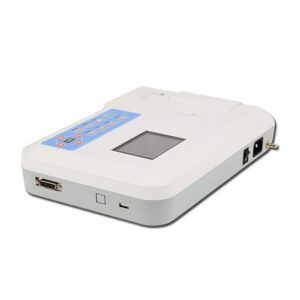

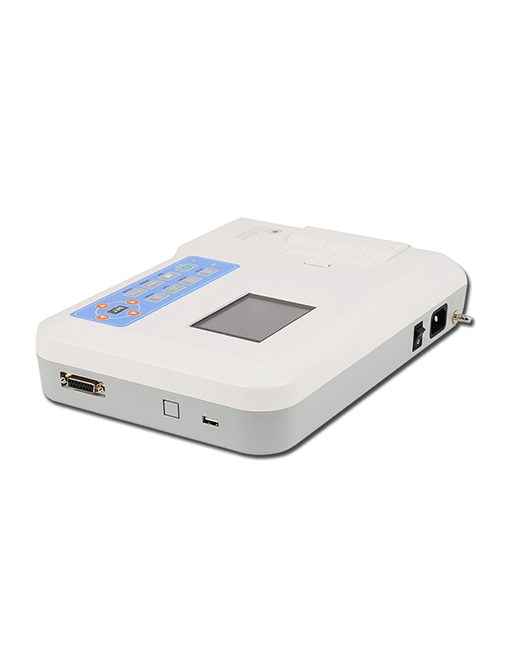

300G CONTEC ECG

ECG300G is an Electrocardiograph which can collect 12-lead ECG signal and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting any rhythm lead, case database management.

Specifications:

• ECG Input Circuit: Floating; protection against Defibrillator effect
• Lead: Standard 12 leads
• Display: 3
• Patient Current Leakage: 10µA
• Sampling Rate: 1000Hz
• A/D Conversion: 12 bit
• Frequency Response: 1
• Time Constant: >3.2 seconds
• CMRR: >60dB >100dB (Add Filter)
• Enduring Polarization Voltage : ±500mV
• Noise Level: <15µVp-p
• Measurement Parameters: EMG interference filter –  25Hz/35Hz (-3dB)
• AC Filter: 50Hz/60Hz (≥20dB)
• Recording way: Thermal printing system (32spots/mm)
• Recording Paper: 80mm(W) x 20mm (L)
• Sensitivity Choice: 5,10,20,40mm/mV, Auto

Wave Output:

• Auto-Record: 25mm/s, 50mm/s
• Rhythm Record: 25mm/s, 50mm/s
• Manual record: 5mm/s, 6.25mm/s, 10mm/s,12.5mm/s, 25mm/s, 50mm/s

• AC, DC: AC 220V,50Hz(110V,60Hz) and DC 7.4V, 3700mAh rechargeable lithium polymer battery
• Fuse specification: 2pcs Ø 5 x 20mm AC Time lag: T250mA/250V (power supply 220V)
• Product Safety Type: Class I, type CF applied part, which has Defibrillation – proof applied part
• Fuse Specification: 2 pcs Ø5 x 20mm AC time lag:  T250mA/250V (power supply:  220V)
• Dimensions: 315mm (L) x 215mm (W) x 77mm (H)
• Net Weight: 2.

USB connection allows real-time transmission to PC, remote data analysis and diagnosis, management and printing through the PC.
