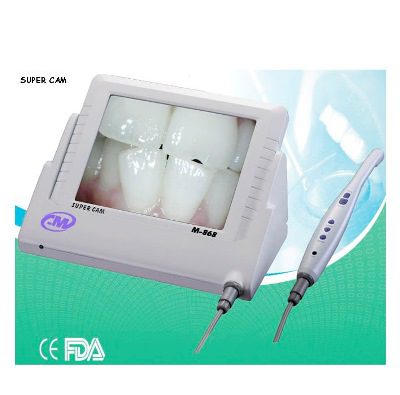

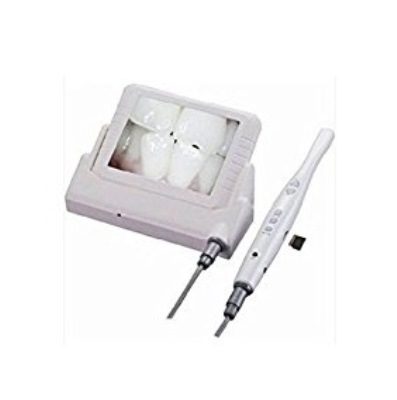

M-868 Dental Wired Intra-Oral Camera

◆Description
1. intraoral camera and 8 inches LCD integrated
2.8 inch LCD can freely adjust contrast, lightness, and color;
3. Replace traditional LCD on a dental chair;
4. Can be freely 45 degrees adjusted;
5. With high resolution and high performance;
6. Suitable for PAL and NTSC system
7. Offer wired and wireless system

◆Specifications
1.LCD Size : 8.0inch (Diagonal)
2.Driver element: a-Si TFT active matrix
3.Resolution: 800*3(RGB)*600
4.Display mode: Normally White, Tran missive
5.Dot pitch: 0.0675(W)*0.2025(H)mm
6.Active area : 162.0(W)*121.5(H)mm
7.Module size: 183.0(W)*141.0(H)*6.3(D)mm
8.Surface treatment: Anti-Glare
9.Color arrangement: RGB-stripe
10.Interface: Digital
11. Backlight Power consumption:1.782W(TYP.)
12.Panel power consumption :0.356W(TYP)

◆Package
M-868A machine x1
Video cable x1
USB Cable x1
Disc x1
Camera sheath x50 DC5V/3A Power supplier x1
CF-986 (TF card) x1 Camera holder x 1
