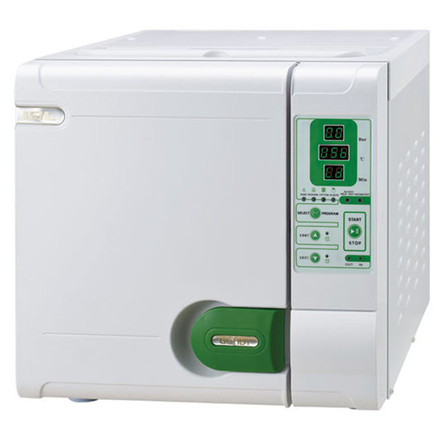

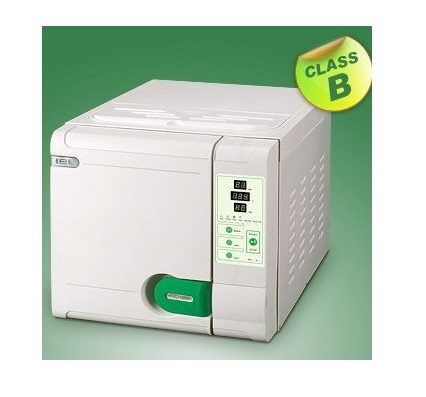

Getidy® JY Series 18L Medical Equipment Autoclave Sterilizer Class B
Introduction
1.New Rapid Steam Generator.
2.Water and Steam Separation Device.

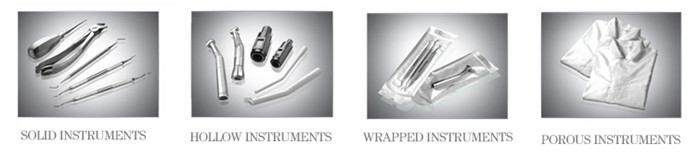

3.European Class B and S, in accordance with EN 13060: 2004 standard, with three times pre-vacuum and one times pre-vacuum, pulse drying function.Vacuum index up to -0.85bar, the device residual humidity <0.2%.Being able to sterilize instruments that are packed,unpacked,solid,Hollow A,Hollow B and Hollow B pipeline.High efficiency,allwave sterilizing.
4.Super bright yellow-green light LED.PC Automatic control.
5.With tests of “BOWIE & DICK”、“HELIX”、“VACUUM”..
6.User-defined Function. Adjust sterilization temperature,vacuum times,sterilization time,drying time.
7.New rapid steam generator of stainless steel pipe, completely solve the Silica gel pipeline and seal because it is aging.
8.Water and steam separation device. In order to improve the life of the vacuum pump, improve the pulse vacuum value, so that the device is more reliable sterilization, enhance the dryness of the device.
9.Upward-Open water tank.
10.ULKA brand mini water pump. SU 304 stripe stainless steel.Double door lock control structure.
11.External thermal printer interface.

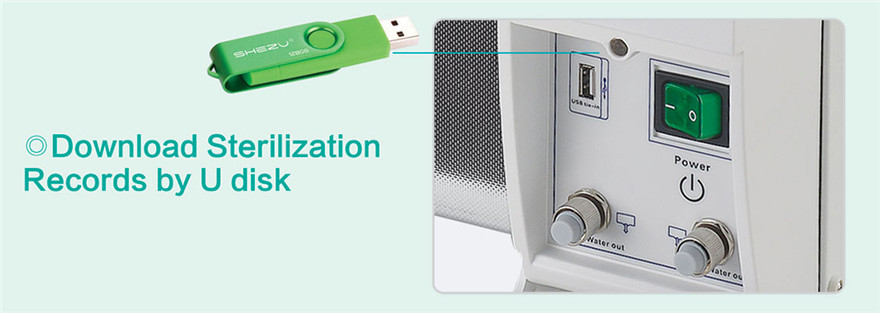

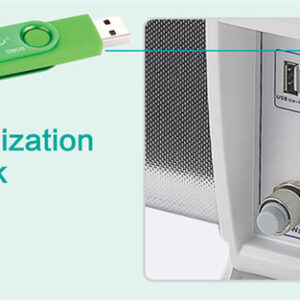

12.By USB connector download sterilization records to U disk.
13.Optional:Built-in Printer.
Specifications
| Model | JY-18 | JY-23 |
| Voltage | AC 110V/60Hz or 220V/50Hz±10% | AC 110V/60Hz or 220V/50Hz±10% |
| Rated power | 1800W | 1800W |
| Rated current | 10A | 10A |
| Volume (L) | 18 L | 23 L |
| Chamber size (MM) | Φ250×355 | Φ250×450 |
| Sterilizing temperature | 121℃ / 134℃ | 121℃ / 134℃ |
| Sterilizing pressure | 1.1 bar / 2.1 bar | 1.1 bar / 2.1 bar |
| Sterilization program | 4 | 4 |
| Test program | 3 | 3 |
| Fresh water volume (L) | 4 L | 4 L |
| Waste water volume (L) | 3.5 L | 3.5 L |
| Packing size (CM) | 67*57*53 | 67*57*53 |
| N.W./G.W.(KG) | 43 / 48 | 45 / 50 |
1.Capacity: 18L or 23L .
2.sterilizing temperature: 121℃, 134℃ .
3.Special function: Kill the AIDS (HIV), hepatitis B (HBV) mad cow virus and Bacillus.
4.Dry procedure: vacuum drying .
5.Display: digital yollow-green LED display with high definition .
6.Sterilization program: 4 kinds of programs (nude / cotton / package / plastic).
7.Test program: Bowie&Dick test, Helix test, Vacuum test .
8.sterilizing data: Print by optional external mini-printer.
9.Safety Features: Safe Valve;Double-control lock system and self-test alam system .
10.instrument containers: 5-layer activity pallet rack with 3 trays .

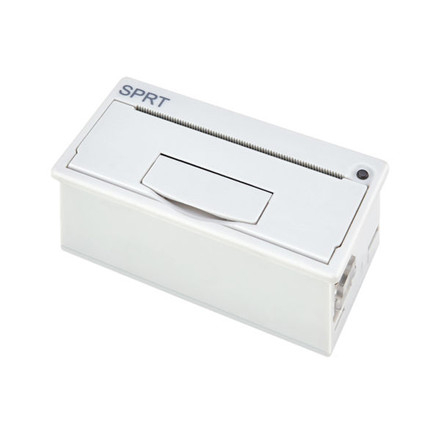

Built-in Printer
1.Voltage(V):DC 5~8.5V/3A
2.Font:12/24
3.Paper type:thermal paper
4.Thickness(mm):0.0.06~0.08
5.Width:57.5±0.5(mm)
6.Diameter:20(mm)
7.Product Size(mm):80X37X43
8.The CPU of control system transfers recording data to the built-in thermal printer and print sterilization records.The thermal print font does not fade for one year and meets the record retention period.

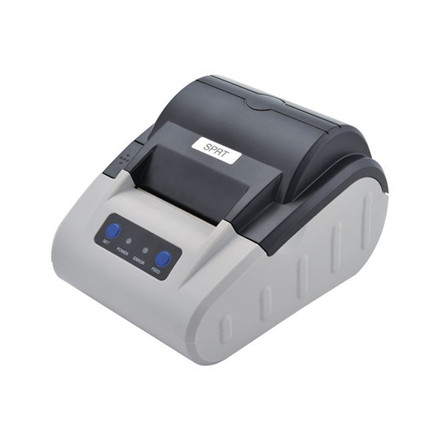

External thermal mini-printer (Optional)
1.Voltage(V):DC 7.5V/2A
2.Font:12/24
3.Paper type:thermal paper
4.Thickness(mm):0.0.06~0.08
5.Width:57.5±0.5(mm)
6.Diameter:60(mm)
7.Product Size(mm):200X150X139
8.Connect the print interface below the back of the steam sterilizer to print sterilization records. The thermal print font does not fade for one year and meets the record retention period.
