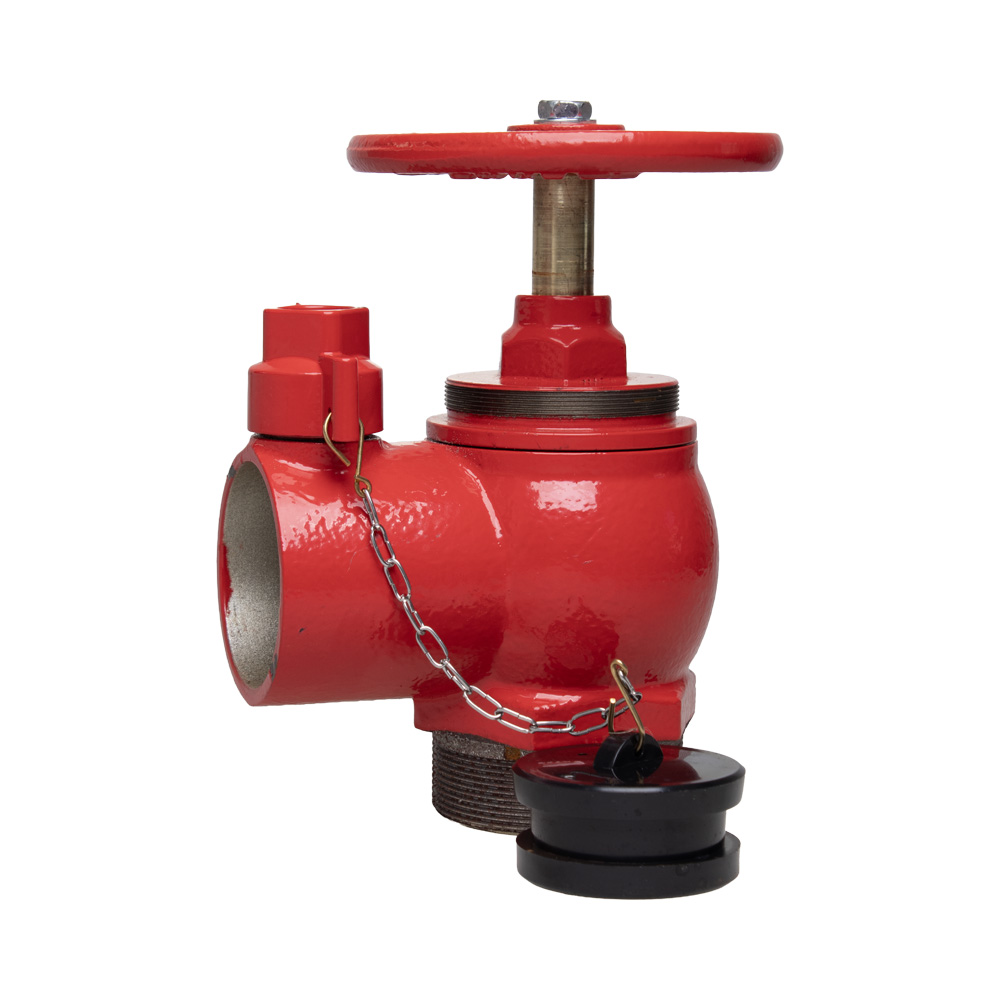

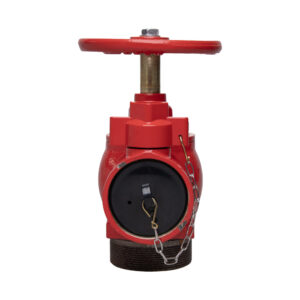

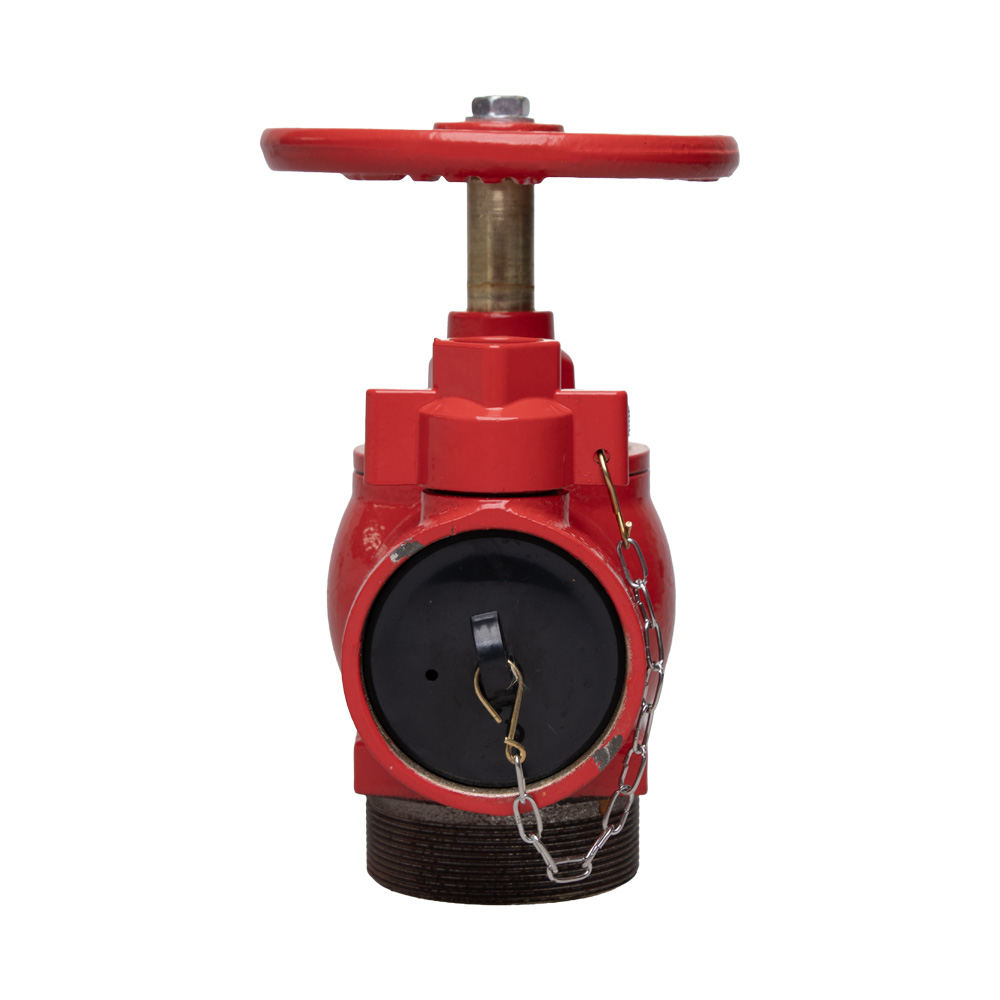

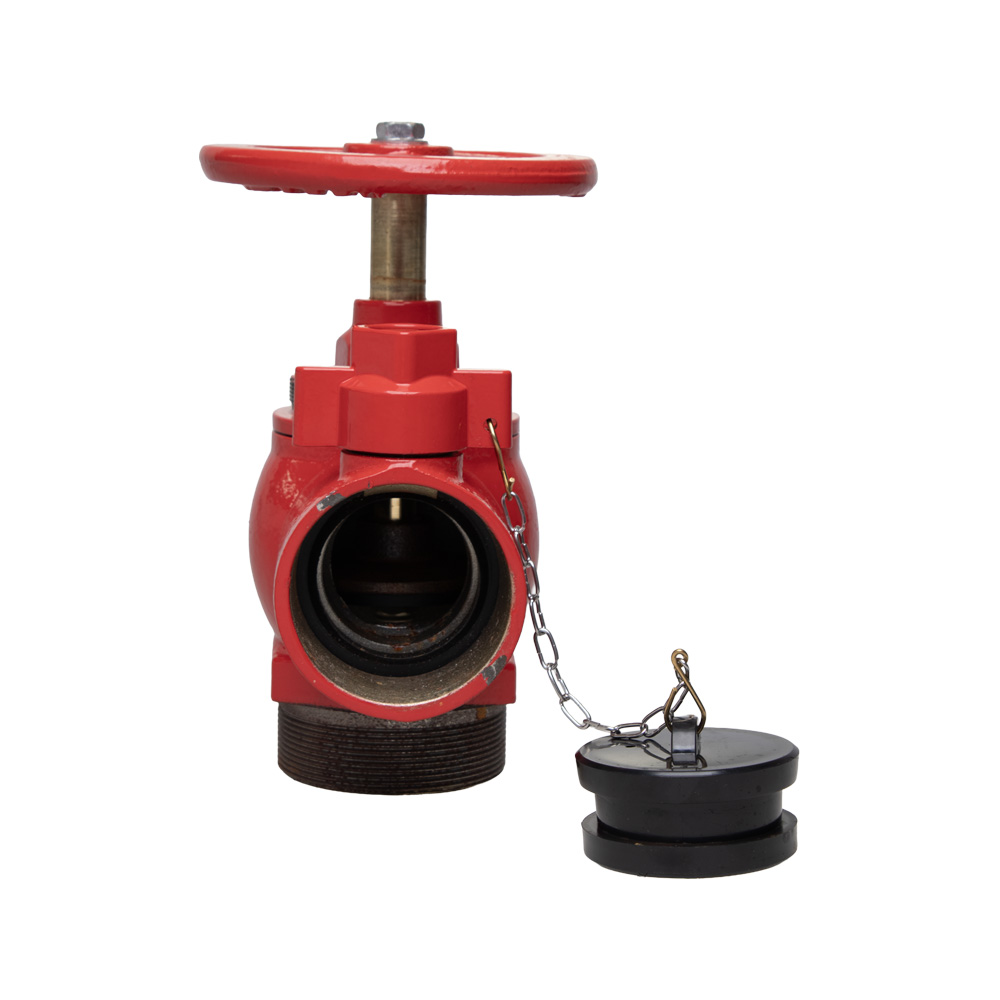

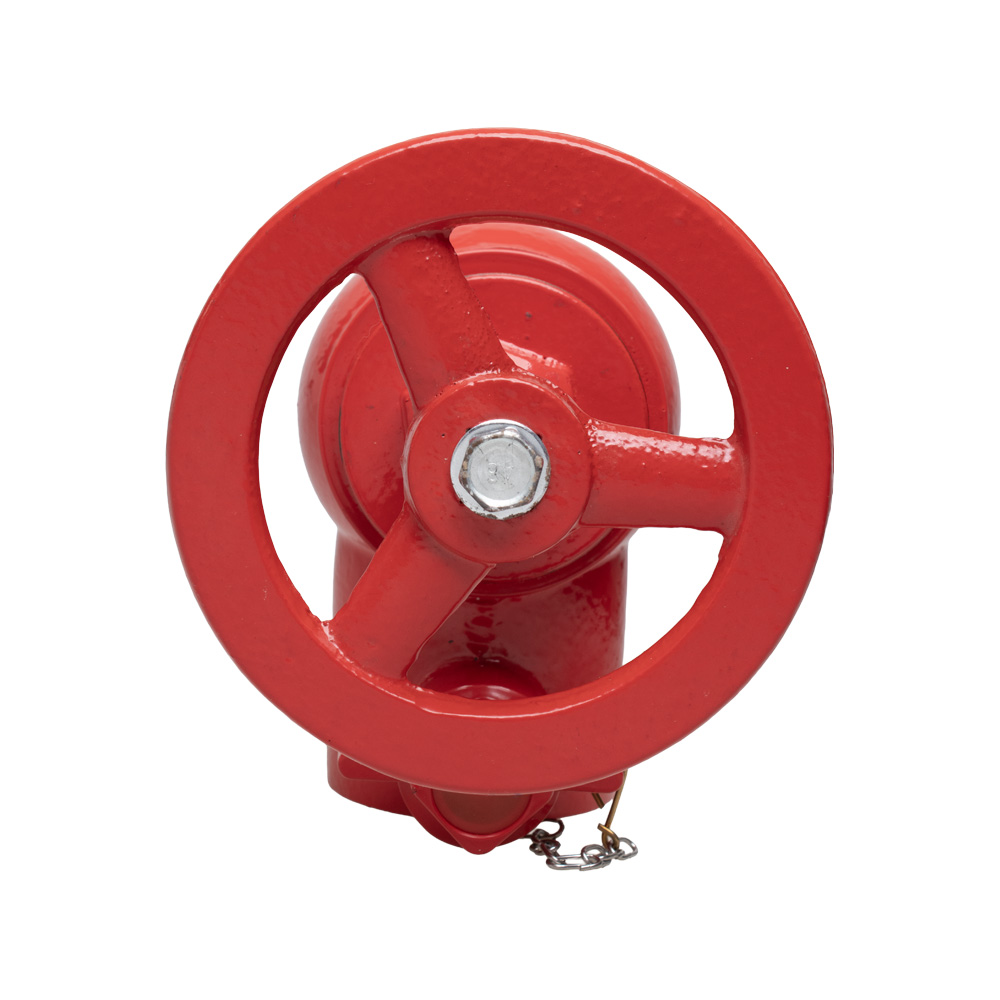

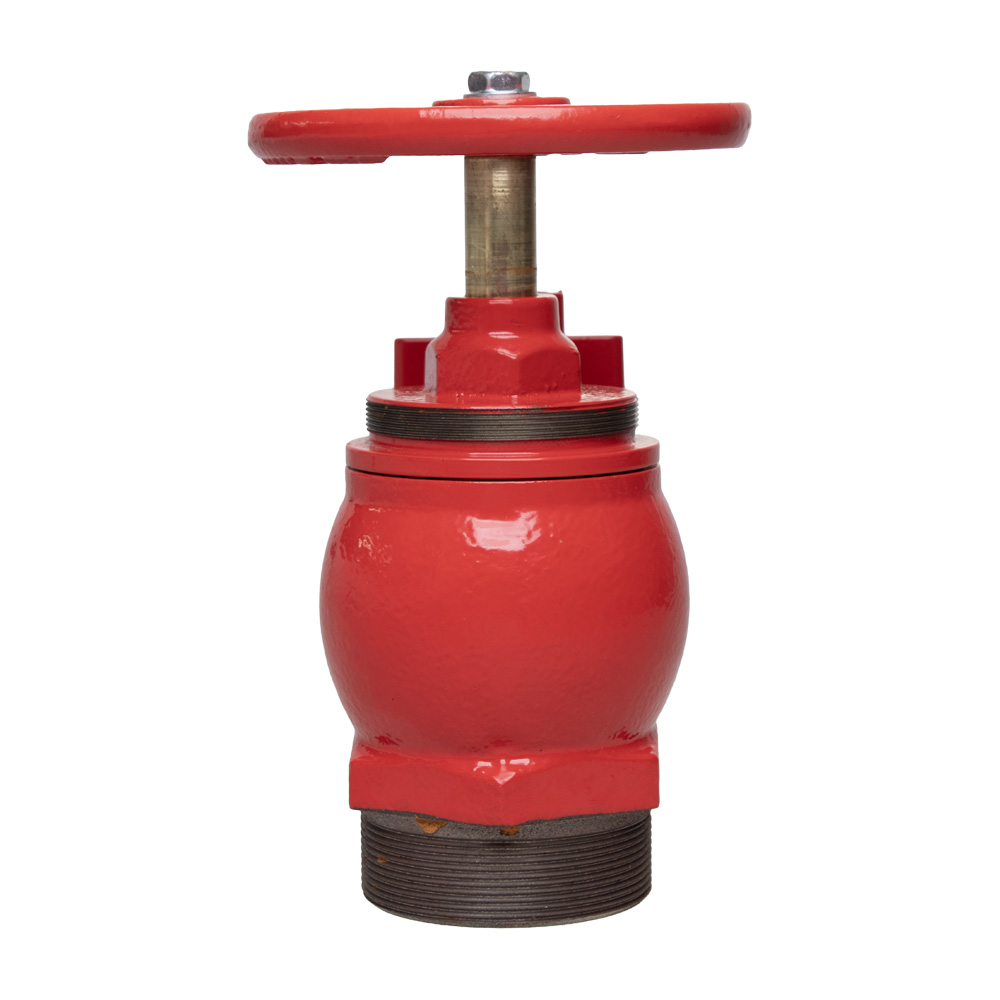

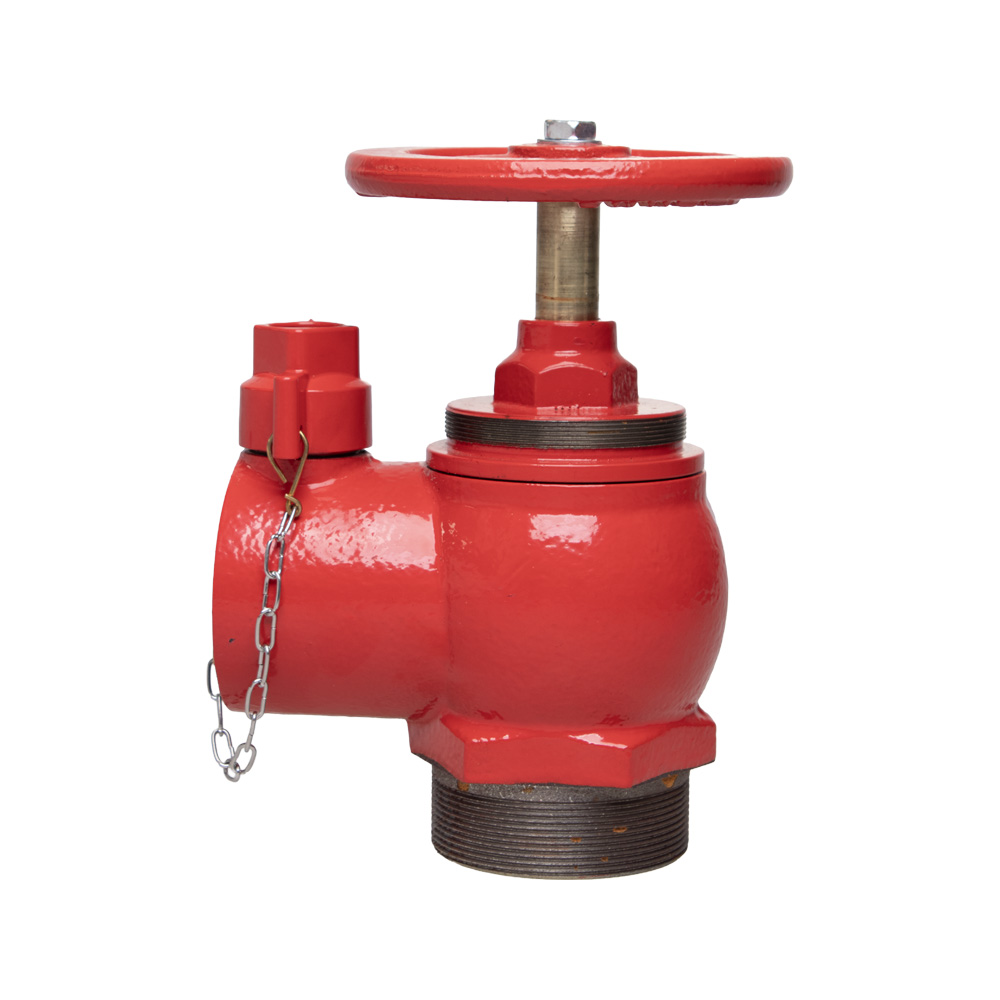

Fire Hydrant Valve R/Angle Cast Iron
R1 168,50 excl. VAT
Ensure rapid and reliable water delivery during emergencies with the Fire Hydrant Valve Right Angle Cast Iron (65mm). This heavy-duty valve features a robust cast iron construction and a user-friendly handwheel for precise flow control in critical fire suppression scenarios.
High-Performance Fire Suppression Control
The Fire Hydrant Valve R/Angle Cast Iron (65mm) is a robust and reliable component essential for effective fire suppression systems in commercial, industrial, and municipal settings. Crafted from high-quality cast iron, this valve offers exceptional durability and corrosion resistance, ensuring long-term performance even in harsh environmental conditions.
Designed with a right-angle configuration, this valve facilitates efficient water flow control, allowing for quick and easy operation during emergency situations. Its specialized inlet and outlet configurations ensure seamless compatibility with standard firefighting equipment, making it a vital asset for any fire safety infrastructure.
Key Features and Benefits
- Durable Construction: Made from high-grade cast iron for maximum longevity and resistance to environmental wear.
- Efficient Flow Control: The right-angle design optimizes water direction and flow management.
- Standardized Compatibility: Features a 65mm male BSP inlet and a 65mm female instantaneous outlet, conforming to industry standards for easy integration.
- Precise Operation: Equipped with a manual handwheel mechanism for controlled and reliable water discharge.
- High Pressure Rating: Engineered to withstand a working pressure of up to 16 bar, providing a powerful stream to combat various fire classes.
Technical Specifications
- Material: Cast Iron
- Configuration: Right Angle
- Nominal Size: 65mm
- Inlet Type: 65mm Male BSP Thread or Flanged (BS 4504 PN16)
- Outlet Type: 65mm Female Instantaneous (BS 336 Standard)
- Operation: Handwheel
- Maximum Working Pressure: 16 bar
- Weight: 5.6 kg
- Dimensions: Length: 15cm, Width: 19cm, Height: 23cm
| Weight | 5,6 kg |
|---|---|
| Dimensions | 15 × 19 × 23 cm |
Product knowledge base and guides
Product Overview
The Fire Hydrant Valve R/Angle Cast Iron is a specialized piece of fire protection hardware designed to regulate the flow of water from a pressurized supply to a fire hose. Its right-angle design is specifically intended to manage the direction of water discharge efficiently, making it ideal for hydrant stations and fire protection manifolds.
Technical Specifications Table
| Parameter | Specification |
|---|---|
| Material | Cast Iron |
| Size | 65mm |
| Inlet Connection | 65mm Male BSP Thread or Flanged (BS 4504 PN16) |
| Outlet Connection | 65mm Female Instantaneous (BS 336 Standard) |
| Working Pressure | 16 bar |
| Mechanism | Manual Handwheel |
| Weight | 5.6 kg |
Installation Guidelines
To ensure safety and functionality, follow these installation principles:
- Professional Installation: Installation should be performed by a certified fire protection technician or plumber.
- Connection Integrity: Ensure the 65mm Male BSP inlet is properly threaded or the flange is securely bolted according to BS 4504 PN16 standards.
- Seal Inspection: Check all gaskets and seals at the connection points to prevent leaks under high pressure.
- Orientation: Ensure the right-angle orientation aligns with the existing piping layout to prevent unnecessary stress on the joints.
Maintenance and Safety
Regular maintenance is critical for fire safety equipment:
- Periodic Testing: Regularly test the valve to ensure the handwheel operates smoothly without seizing.
- Corrosion Inspection: Inspect the cast iron body for signs of excessive corrosion or pitting, especially in coastal or chemically active environments.
- Debris Clearance: Ensure the outlet is clear of obstructions to allow for immediate, high-pressure water discharge.
- Pressure Testing: Periodically verify that the system maintains its integrity at the rated 16 bar working pressure.
Frequently Asked Questions
Q: What standard does the outlet follow?
A: The outlet follows the BS 336 Standard for 65mm female instantaneous fittings.
Q: Can this valve be used in industrial settings?
A: Yes, its cast iron construction and 16 bar pressure rating make it suitable for commercial, industrial, and municipal applications.
Q: How is the water flow controlled?
A: The flow is controlled manually via a robust handwheel mechanism, allowing for precise adjustment of the water stream.
