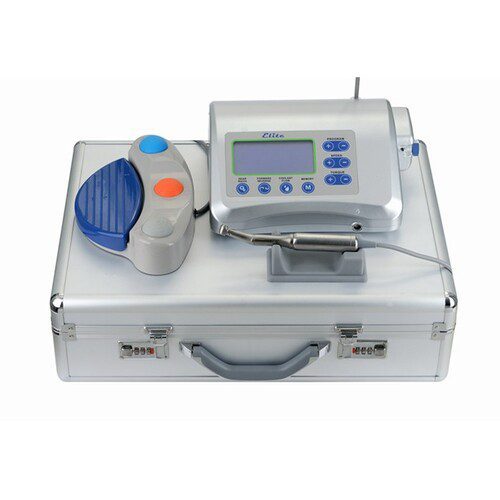

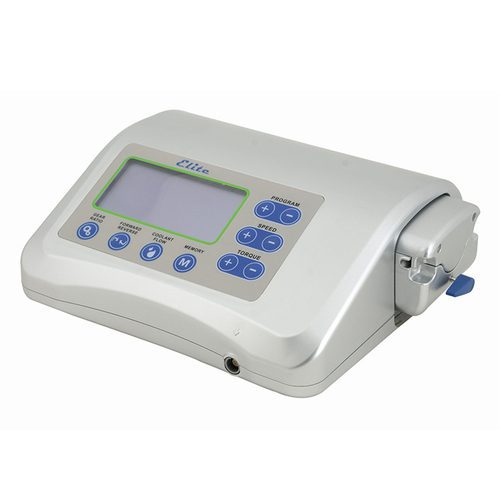

Elite Implant System

The Elite Dental Implant System is a set of certified medical devices that are used to anchor a denture or replace missing teeth by professional dentists. An implant system consists of different types of dental implants, different dental superstructures, and implant instruments that has LCD display and Multifunctional foot switch.

Features:

1)Intuitive LCD display and control panel bring convenience to the operation;
2)Original imported brushless motor is characterized by great torque, low noise, non-vibrations as well as accuracy;
3)Alternative input supply voltage: AC100-110V or AC220-240V;
4)Multifunctional foot switch is not only handy to operate but also against cross-infection caused by the contact between hands and the device;
5)Adjustable rotation speed, torque, coolant flow and forward/reverse, which can meet various demands during implanting process;
6)10 types of reduction contra angles are able to be selected in order to meet various clinical demands;
7)10 kinds of program settings. Each of which allows setting up different values of rotation speed, torque, coolant flow, forward/ reverse and reduction ratio.

TECHNICAL SPECIFICATIONS:
1)Input Power Supply: AC100-110V or AC220-240V  50/60HZ;
2)Output Power: 210W;
3)Motor Rotation Speed Range: 1000rpm-40000rpm (1:1);
4)Torque Range: 10-60N.cm (20:1);
5)Coolant Flow: 0-100ml/min;
6)Stored Programs: 10 types;
7)Foot Switch Control: Coolant Flow, Program, Forward / Reverse, Speed.
