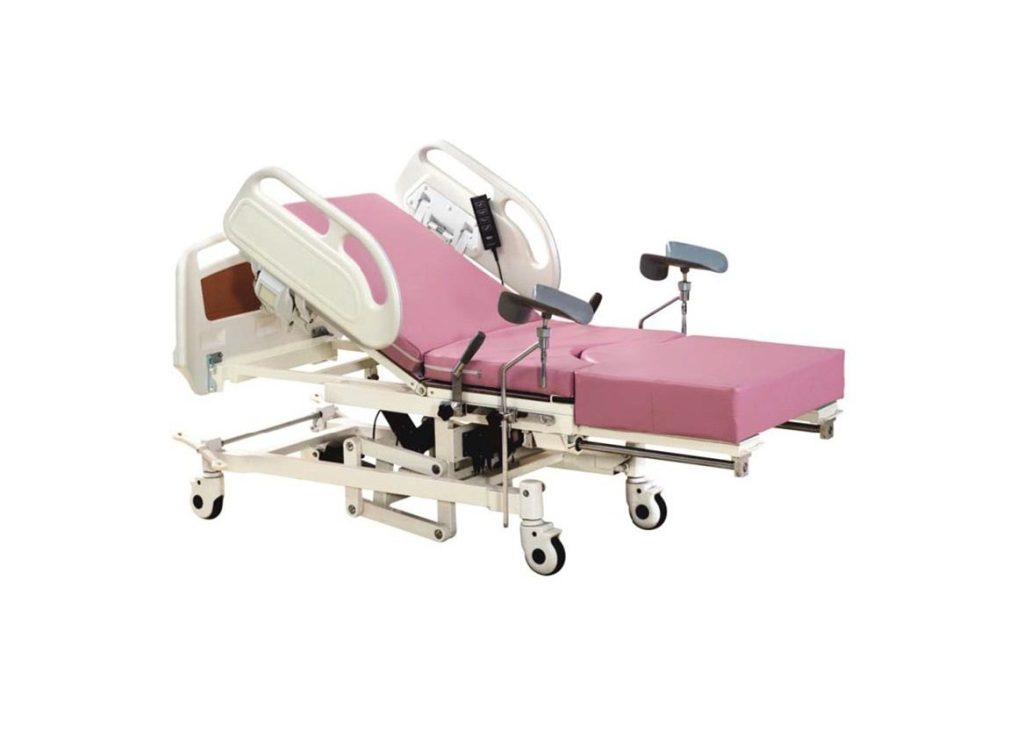

B-48-2 Electric Obstetric Bed

 B-48-2 Obstetric Electric Bed

Bed BOX SIZE 1700 X 960 X 800 mm

Estimated weight 120 kg

SIZE L 2000/1450 X W 900 /660 H 620 / 920 mm

Reverse trendelenburg 0-12 degrees.

ABS Head board.

ABS Side rails.

Motors from Taiwan. Ti Motion.

Adjustable leg supports.

Hand grips.

Large bucket.

Obstetric electric bed B-48 Size

Main feature:
1. Epoxy coated steel bed frame , with ABS engineering plastic side and head board;
2. Telescopic working table , to be controlled by linear bearing, telescopic length : 550mm;3. Three function , which are operated by electric motor : 1).back rest:0-70±5º 2) high-low:300±30mm
3) trendelenburg & reverse trendelenburg 12±2º4. equipped with 8cm thickness high density sponge mattress covered with artificial leather.
5. adjustable leg support and sliding grip holder.
6. four dia-125mm castors, which are with central brakes
